Zonotope

Definition

$${\cal Z} \coloneqq \{ c+\sum_{i=1}^{p} \beta_{i} g^{i} \ \big| \ \beta_{i} \in [-1,1] \}$$

shorthand as ${\cal Z}=\left<c,G \right>$, order defined as $o=\frac{G_{col}}{G_{row}}$

Example

from pyrat.geometry import Zonotope
from pyrat.geometry.operation import partition
from pyrat.util.visualization import plot

# random zonotope with 100 generators in 2d space
z = Zonotope.rand(2, 100)
# split this zonotope in smaller cells as zonotope
zono_parts = partition(z, 1, Geometry.TYPE.ZONOTOPE)

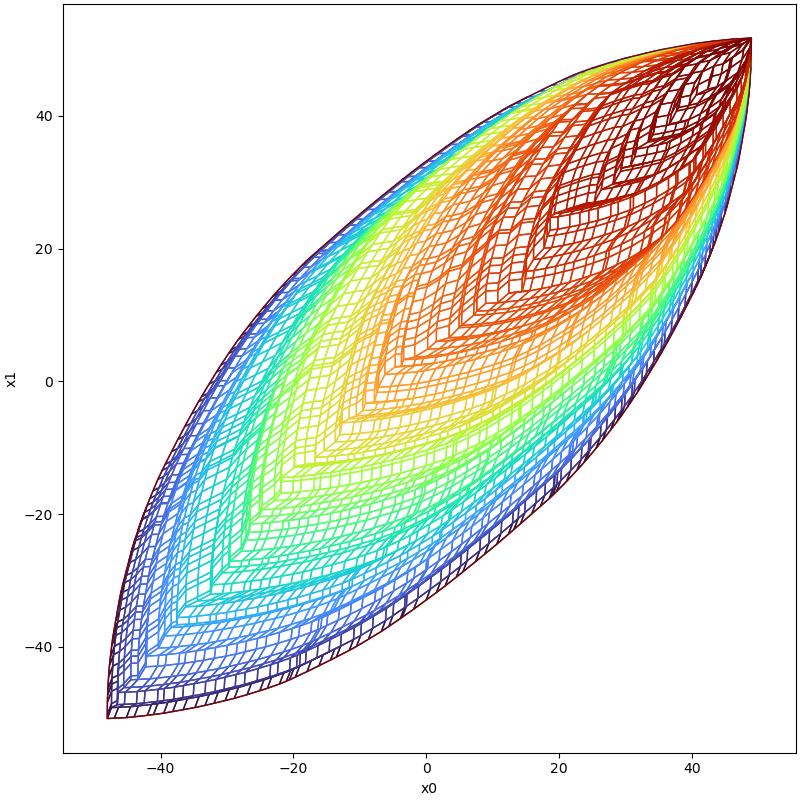

# visualize the final result
plot([*zono_parts,z], [0, 1])

Operations

enclose

reduce

cartesian product

$${\cal Z_0} \times {\cal Z_1} = \left\{ [z_0^T \ z_1^T]^T \ \big| \ z_0 \in {\cal Z_0}, z_1 \in {\cal Z_1} \right\}$$

quadratic map

$$[Z_0] Q [Z_1] = \sum_i^I \sum_j^J [Z_0]_i Q_{ij} [Z_1]_j$$

${\cal Z_{Q}}=\{\lambda | \lambda_{i}= x^T Q^{i} x, x \in {\cal Z}\}$ can be over approximated by a zonotope ${\cal Z}=(d,h^0, h^1, \cdots , h^{\delta})$ where $\delta = \begin{pmatrix} p+2 \\ 2 \end{pmatrix} -1$, the center is computed as

$$d_{i} = c^T Q^i c + 0.5 \sum_{s=1}^{p} {g^s}^T Q^i g^s$$

and the generators are computed as

$$\begin{cases} h_i^j = c^T Q^i g^j + {g^j}^T Q^i c, j=1 \cdots p \\ h_i^{p+j} = 0.5 {g^j}^T Q^i g^j, j=1 \cdots p \\ h_i^{2p+l} = {g^j}^T Q^i g^k + {g^k}^T Q^i g^j, l= \sum_{j=1}^{p-1} \sum_{k=j+1}^{p} 1 \end{cases}$$

check reference [2] for more.

Arithmetic

addition or '+'

• with another zonotope

$$\left<c_{0},G_{0} \right> + \left<c_{1},G_{1} \right> = \left<c_{0}+c_{0},\left[G_{0} \ G_{1} \right] \right>$$

• with another interval

$$\left< c,G \right> + [a,b] = \left<c+\frac{a+b}{2},\left[G,\frac{b-a}{2} \right] \right>$$

• with another real number

$$\left<c,G \right> + a = \left< c+a,G \right>$$

multiplication or '*'

• with another real number

$$\left<c,G \right> \cdot a = \left< a \cdot c , a \cdot G\right>$$

• with another interval

$$\left< c,G \right> \cdot [a,b] = \left< \frac{a+b}{2} c, \left[ \frac{b-a}{2} c, \frac{a+b}{2} G, \frac{b-a}{2} G \right] \right>$$

• with another zonotope

$$\left<c_{0},G_{0} \right> \cdot \left<c_{1},G_{1} \right> = \left< c_0 c_1, \left[ c_1 G_0, c_0 G_1, g_0^0 g_1^0, \cdots, g_0^i g_1^j, \cdots, g_0^p g_1^q \right] \right>$$

matrix multiplication or '@'

• real matrix with zonotope matrix

$$(X[Z])_{ij} = \sum_{k=1}^{n} X_{ik} [Z]_{kj}$$

• zonotope matrix with real matrix

$$([X]Z)_{ij} = \sum_{k=1}^{n} [X]_{ik} Z_{kj}$$

• zonotope matrix with another zonotope matrix

$$([X][Z])_{ij} = \sum_{k=1}^{n} [X]_{ik} [Z]_{kj}$$

where $[X] \sube \R^{o \times n}$ and $[Z] \sube \R^{n \times p}$

References

[1]: Kühn, W. (1998). Rigorously computed orbits of dynamical systems without the wrapping effect. Computing, 61(1), 47-67.

[2]: Althoff, M., & Krogh, B. H. (2012, April). Avoiding geometric intersection operations in reachability analysis of hybrid systems. In Proceedings of the 15th ACM international conference on Hybrid Systems: Computation and Control (pp. 45-54).

[3]: Althoff, M. (2010). Reachability analysis and its application to the safety assessment of autonomous cars (Doctoral dissertation, Technische Universität München).

[4]: Althoff, M., Krogh, B. H., & Stursberg, O. (2011). Analyzing reachability of linear dynamic systems with parametric uncertainties. In Modeling, Design, and Simulation of Systems with Uncertainties (pp. 69-94). Springer, Berlin, Heidelberg.

[5]: Yang, X., & Scott, J. K. (2018). A comparison of zonotope order reduction techniques. Automatica, 95, 378-384.

[6]: Althoff, M. (2015). On computing the minkowski difference of zonotopes. arXiv preprint arXiv:1512.02794.
